What's new with these?

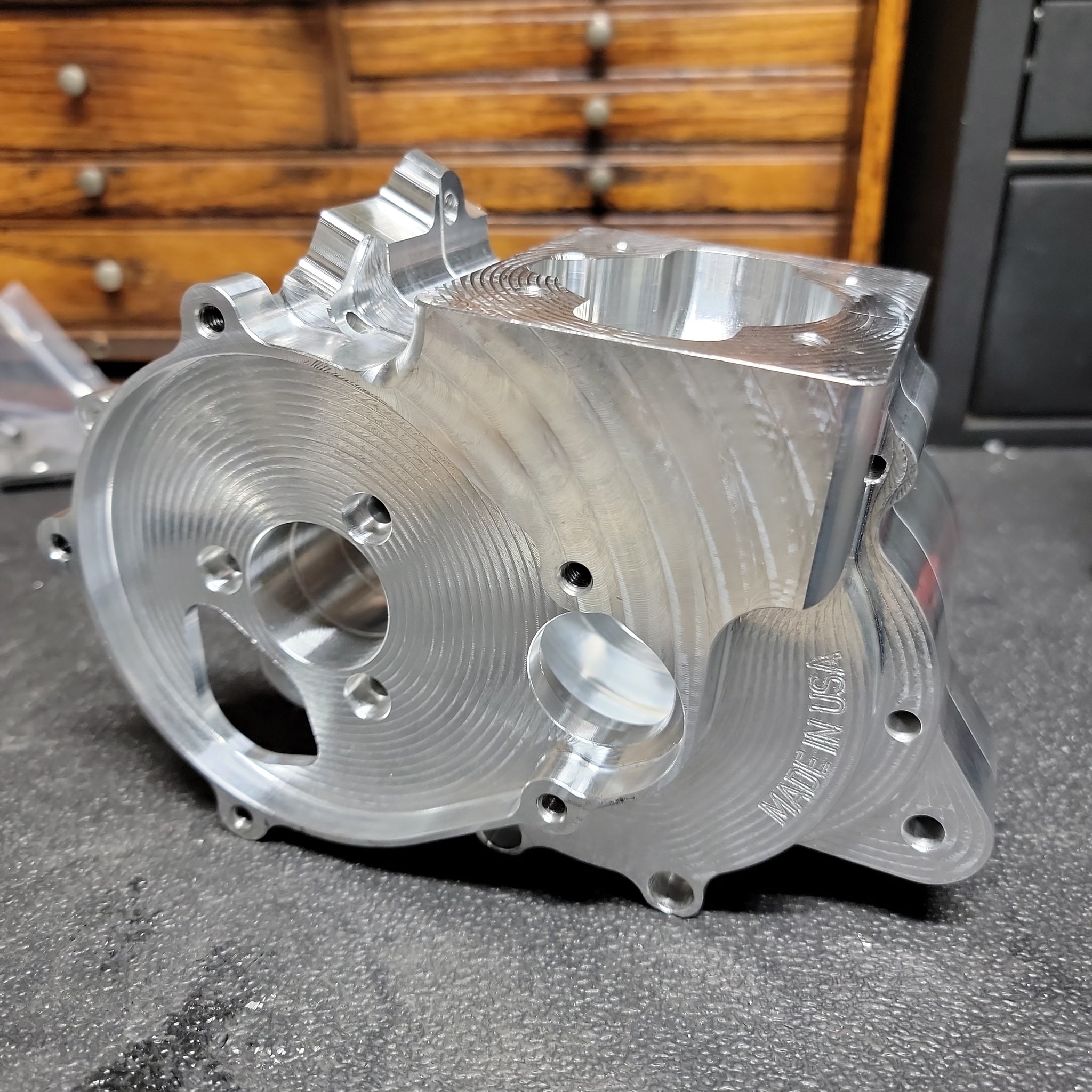

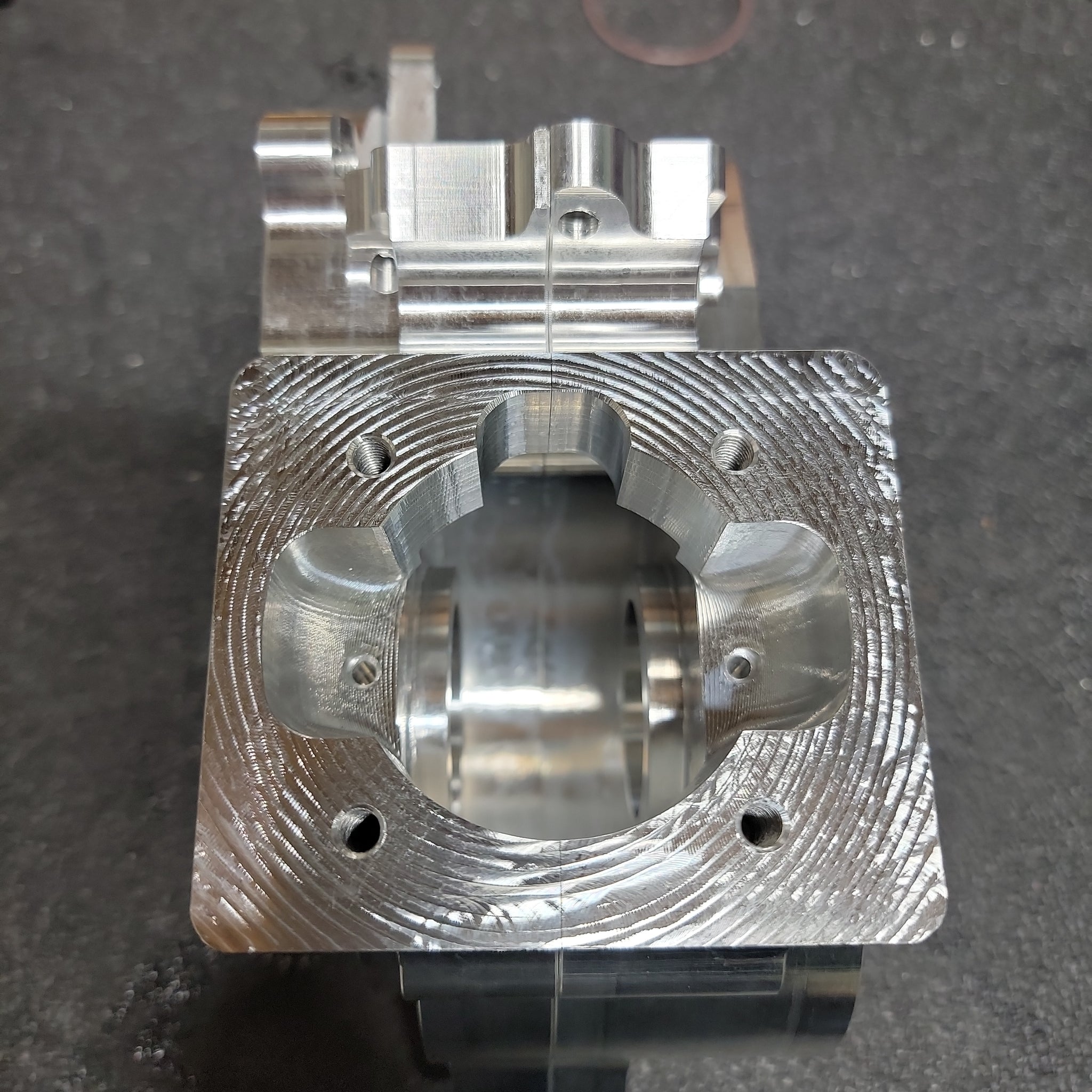

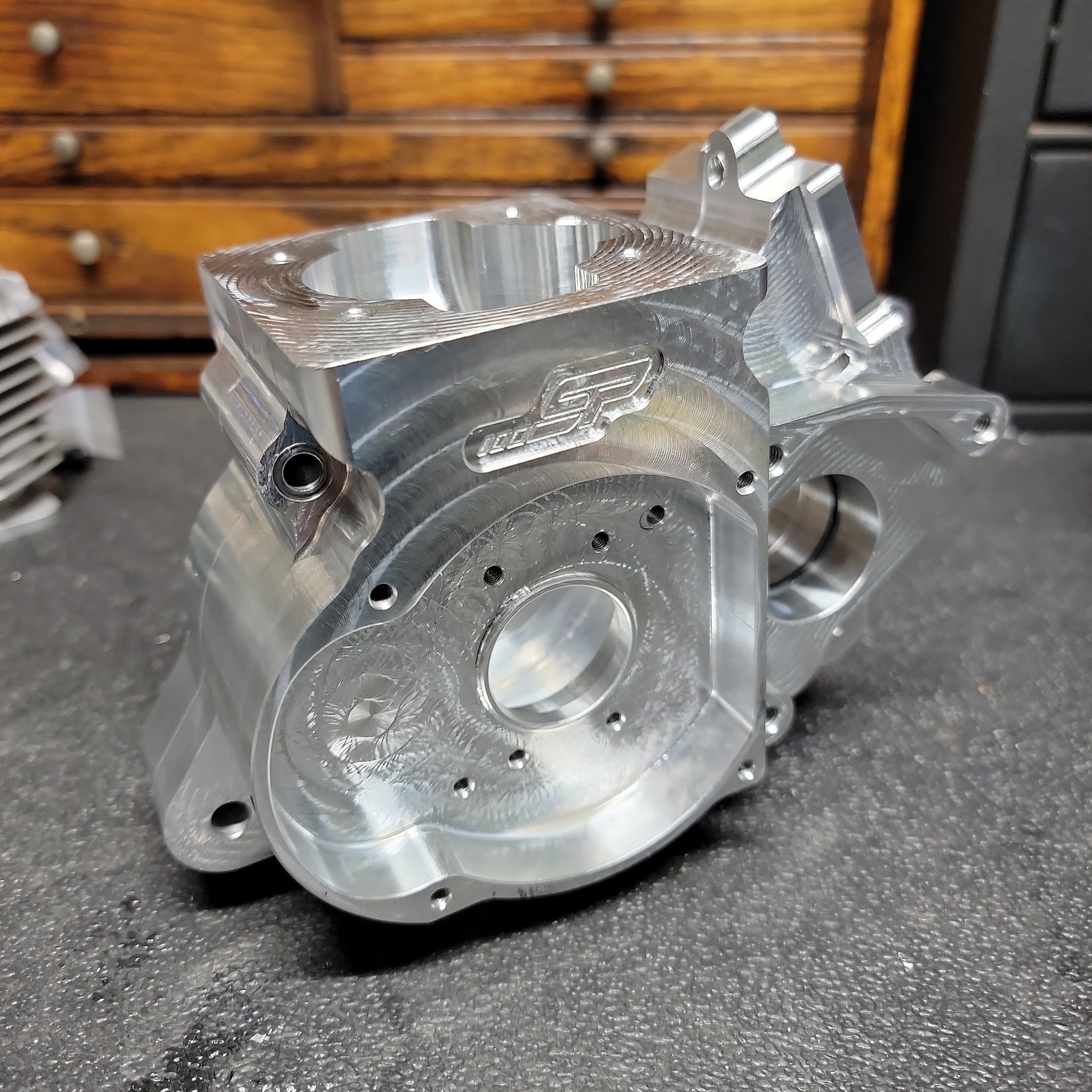

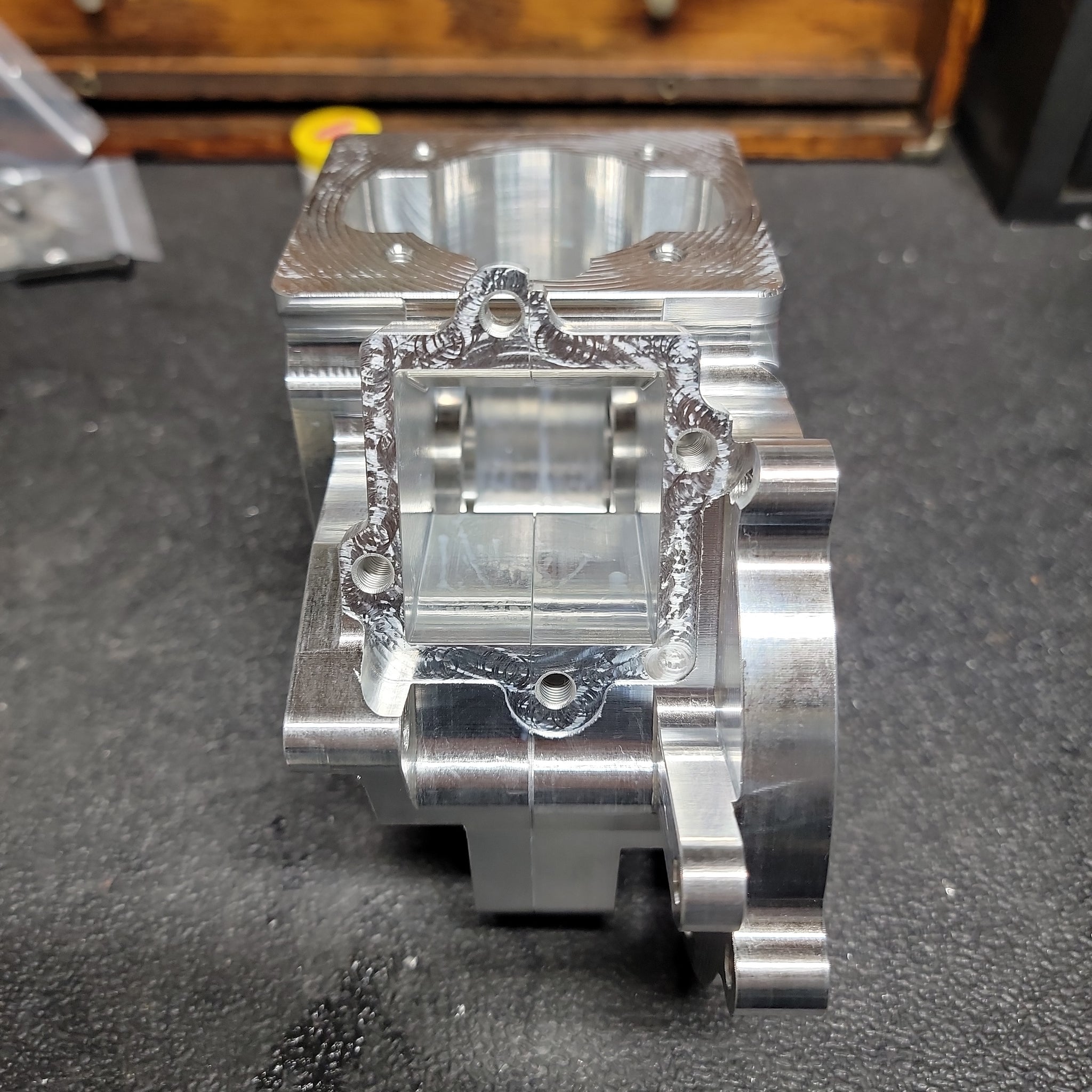

Case reed cases specifically made to bolt on Minarelli Horizontal cylinders, utilizing both stock and KTM50 ignition*. These are also compatible with stock china long rod cranks and RDM Billet cranks**.
- taller deck so no more spacer plate adapters needed
- larger OD Viton crank seals
- proprietary integrated rotating mounts
- pre ported for Minarelli Vertical cylinders
- Large 6302 Crank Bearings
- Added a clutch cable stay
- Convenient pry points for easy engine disassembly
- Updated logos and branding
- Mounts included are 1.65" and 1.25" diameter
The hardware kit includes Grade 12.9 bolts for the case, seals, bearings, retaining rings, etc. For a complete list reference Hardware Kit
*Ktm ignition rotor requires RDM crank or another taper adapter
**additional shims/gaskets may be required for differences in rod length and stroke.
